Waste chain conveyors, waste conveyors

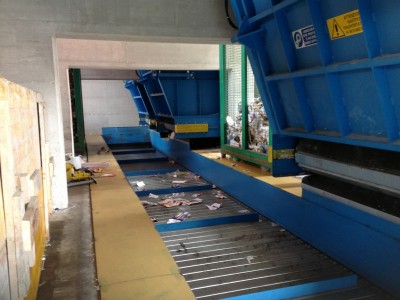

METALLIC PLATES CONVEYORS

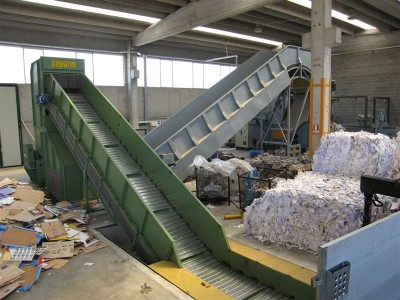

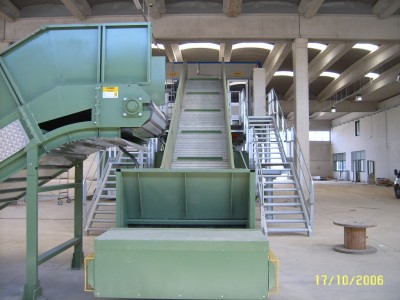

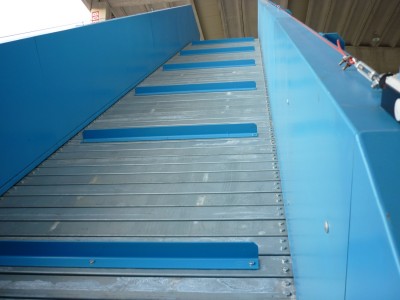

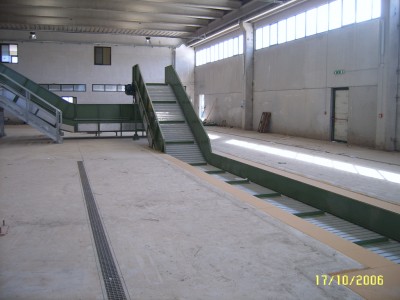

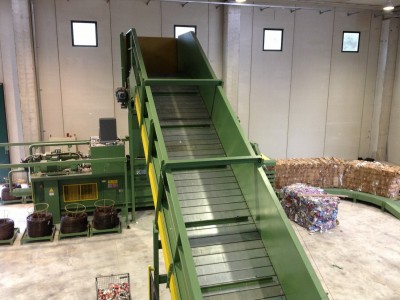

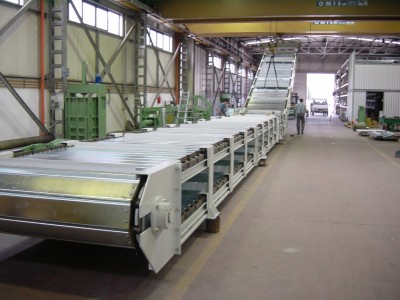

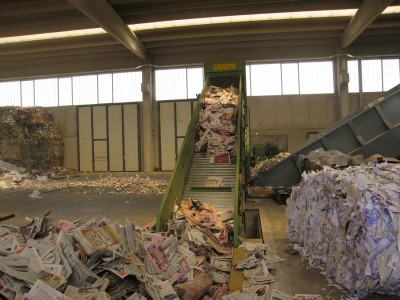

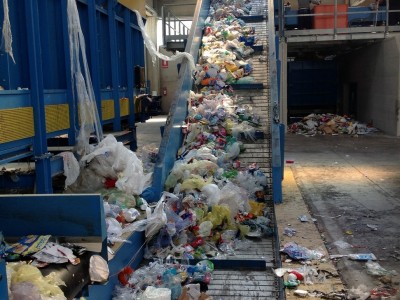

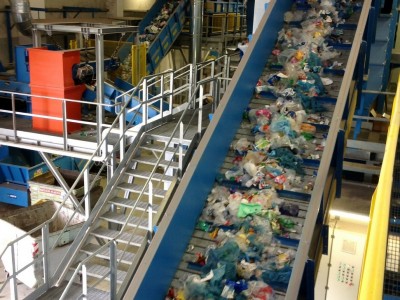

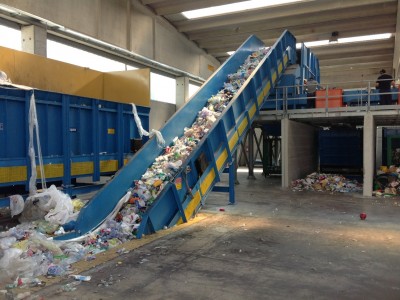

Waste chain conveyors – Metallic plates series TM 125
TECHNICAL CHARACTERISTICS	TM 125_12	TM 125_15	TM 125_18
Type of belt	Metallic plates	Metallic plates	Metallic plates
Interaxial length:	Variable	Variable	Variable
Total width:	1.560 mm	1.860 mm	2.160 mm
Working width:	1.180 mm	1.480 mm	1.780 mm
Inclination:	Variable	Variable	Variable
Boards heigth:	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)
Chain pitch:	125 mm	125 mm	125 mm
Rollers diameter:	50/65 mm	50/65 mm	50/65 mm
Tensile stress of chains:	80.000 N	80.000 N	80.000 N
Speed of belt:	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)

Waste chain conveyors – Metallic plates serie TM 200
TECHNICAL CHARACTERISTICS	TM 200_15	TM 200_18
type of belts:	Metallic plates	Metallic plates
Interaxial length:	Variable	Variable
Total width:	1.860 mm	2.160 mm
Working width:	1.480 mm	1.780 mm
Inclination:	Variable	Variable
Boards heigth:	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)
Chain pitch:	200 mm	200 mm
Rollers diameter:	50/65 mm	50/65 mm
Tensile stress of chains:	180.000 N	180.000 N
Speed of belt:	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)

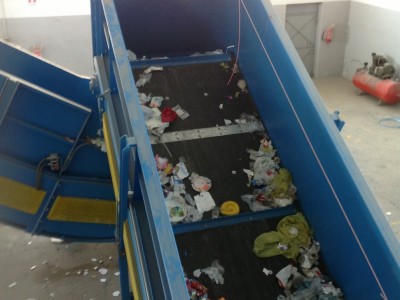

METALLIC PLATES CONVEYORS COVERED WITH RUBBER

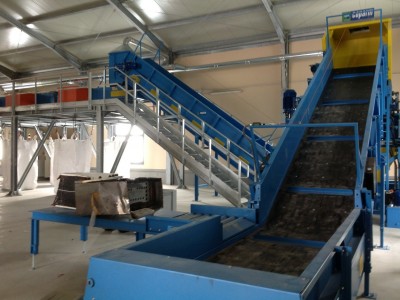

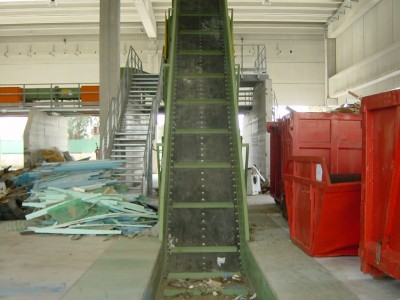

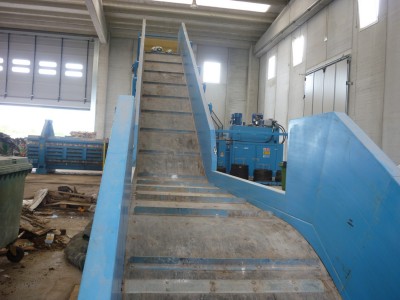

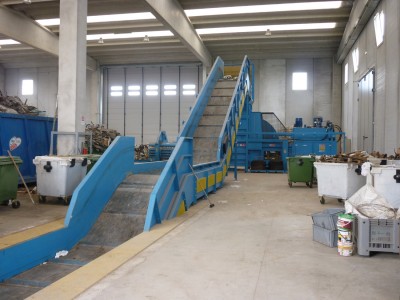

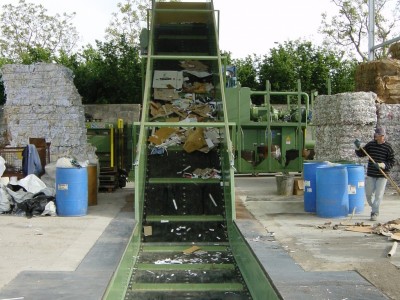

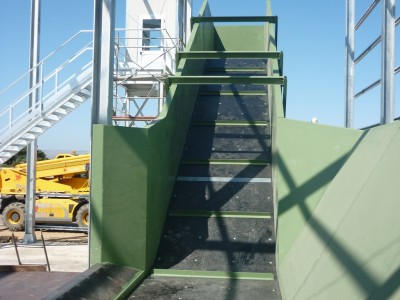

Waste chain conveyors – Metallic plates series TMG 125
TECHNICAL CHARACTERISTICS	TMG 125_12	TMG 125_15	TMG 125_18
Type of belt:	Rubber metallic plates	Rubber metallic plates	Rubber metallic plates
Interaxial length:	Variable	Variable	Variable
Total width:	1.560 mm	1.860 mm	2.160 mm
Working width:	1.180 mm	1.480 mm	1.780 mm
Inclination:	Variable	Variable	Variable
Boards heigth:	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)
Chain pitch:	125 mm	125 mm	125 mm
Rollers diameter:	50/65 mm	50/65 mm	50/65 mm
Tensile stress of chains:	80.000 N	80.000 N	80.000 N
Speed of belt:	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)

Waste chain conveyors – Metallic plates series TMG 200
TECHNICAL CHARACTERISTICS	TMG 200_15	TMG 200_18
Type of belt:	Metallic plates	Metallic plates
Interaxial length:	Variable	Variable
Total width:	1.860 mm	2.160 mm
Working width:	1.480 mm	1.780 mm
Type of belt:	EP 400/3 plys oil proof	EP 400/3 plys oil proof
Inclination:	Variable	Variable
Boards heigth:	500 – 1.000 mm (Variable)	500 – 1.000 mm (Variable)
Chain pitch:	200 mm	200 mm
Rollers diameter:	50/65 mm	50/65 mm
Tensile stress of chains:	180.000 N	180.000 N
Speed of belt:	0 – 10 ml/min (variable)	0 – 10 ml/min (variable)

Range of Coparm conveyors

CHAIN CONVEYORS

RUBBER CONVEYOR BELTS

Waste chain conveyors, waste processing machines, waste processing plants, waste recycling machines

Coparm is leader in to the planning, production and assembly of sorting systems and components for the waste disposal and recycling industry world-wide.

We offer you a tailor-made full service, from conceptual design to planning, production, modernisation, optimisation, assembly, start-up, conversions, disassembly, maintenance and servicing of components to complete recycling and sorting systems. You can count on us to find the right solution for all your needs.

The efficiency of any recycling plant, tyre recycling plant depends on the performance of its component parts.
For this reason, we are constantly striving to improve the functionality of our units so that they can handle mechanical production steps even more efficiently.
